Product Overview

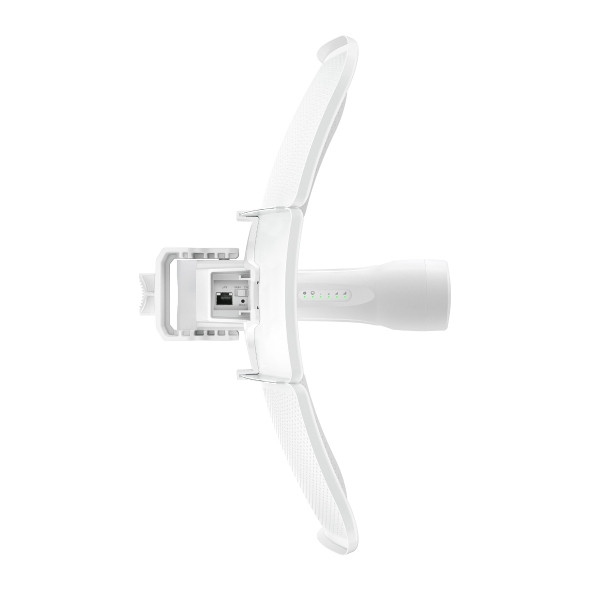

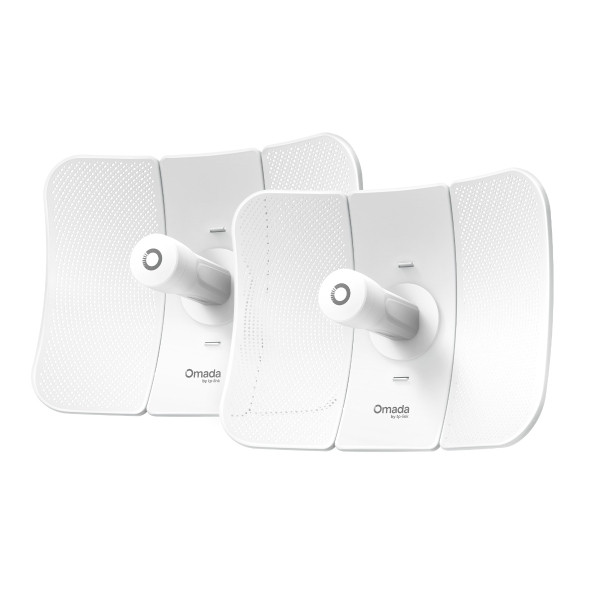

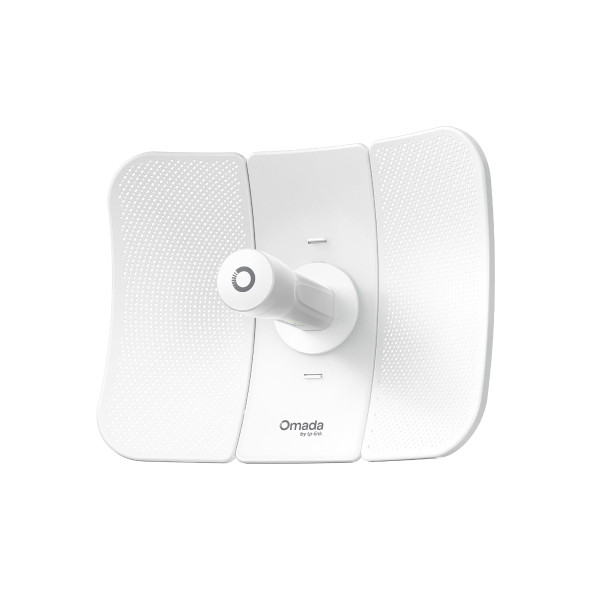

Omada 5 GHz 867 Mbps Indoor/Outdoor Wireless Bridge Beam Bridge 5 UR KIT is an enterprise-grade Wi‑Fi bridge kit engineered for ultra-range transmission up to 9.3 miles (15 km). It delivers reliable pointto-point connectivity in remote outdoor environments—ideal for forests, mining sites, islands, and other hard-to-reach locations where extending network access is critical.
Business-Grade 15-km Ultra-Range Wi-Fi Connectivity
It delivers reliable Wi-Fi with low latency and strong signal integrity, equipped with 23 dBi high-gain directional antennas for ultra-range, uninterrupted wireless transmission, and it is ideal for connecting remote sites in rural and hard-to-wire environments.
Effortless Plug-and-Play Setup
Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go, ideal for quick and easy deployments.
App-Guided Alignment for Optimal Performance
Simply bridge alignment with real-time signal strength visualization on the Omada app. Perfect for installations where bridges are far apart, this feature ensures optimal alignment and connectivity. The Omada app also allows users to easily verify installations, test transmission speeds, and troubleshoot connections for optimal performance.
Simple Deployment with PoE Support
1× Gigabit PoE port delivers both power and data through a single cable, cutting deployment costs and outdoor wiring complexity. It supports both 802.3af PoE and Passive PoE power supply.
Outdoor-Ready Design for Extreme Conditions
Beam Bridge 5 UR KIT supports IP65 weatherproof and 6kV lightning protection safeguard your network in harsh outdoor environments. Additionally, an extended temperature tolerance of -40 °C to 70 °C makes it ideal for extremely hot and cold environments.
Remote Monitoring & Management
Use the Omada app for easy on-site setup-no internet required. For additional flexibility, switch to Omada SDN, enabling cloud management via the Omada app or web portal for seamless control, and monitor from anywhere.

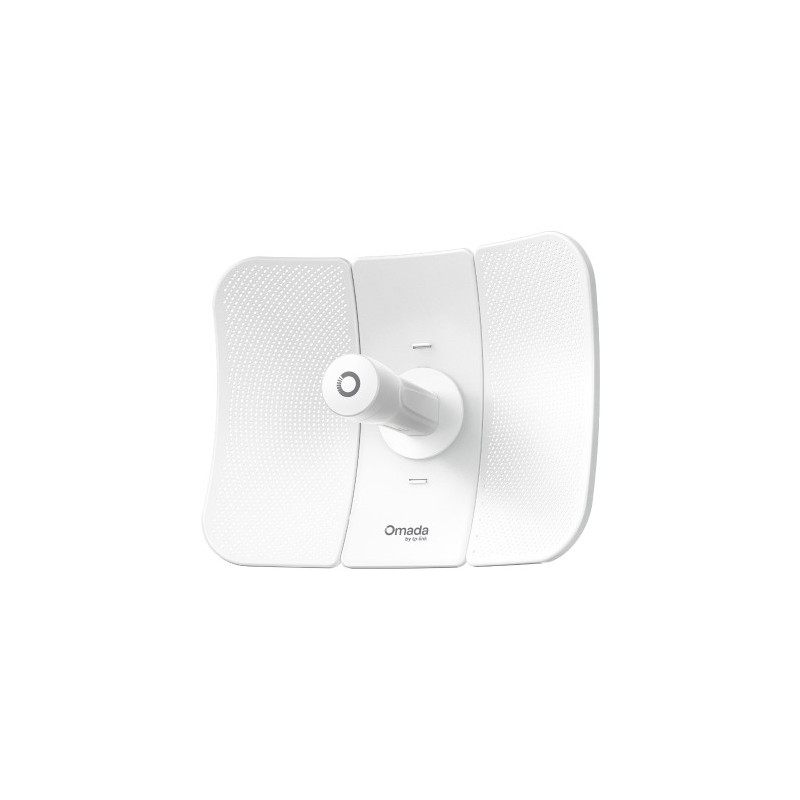

TP-Link Beam Bridge 5 UR KIT. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 590551.2" (15000 m). Antenna design: External, Antenna type: 2x2, Antenna gain level (max): 23 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 5.150 - 5.850 GHz. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at,.... Security algorithms: EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SNMP, SNMPv2,...
