STARTECH.COM

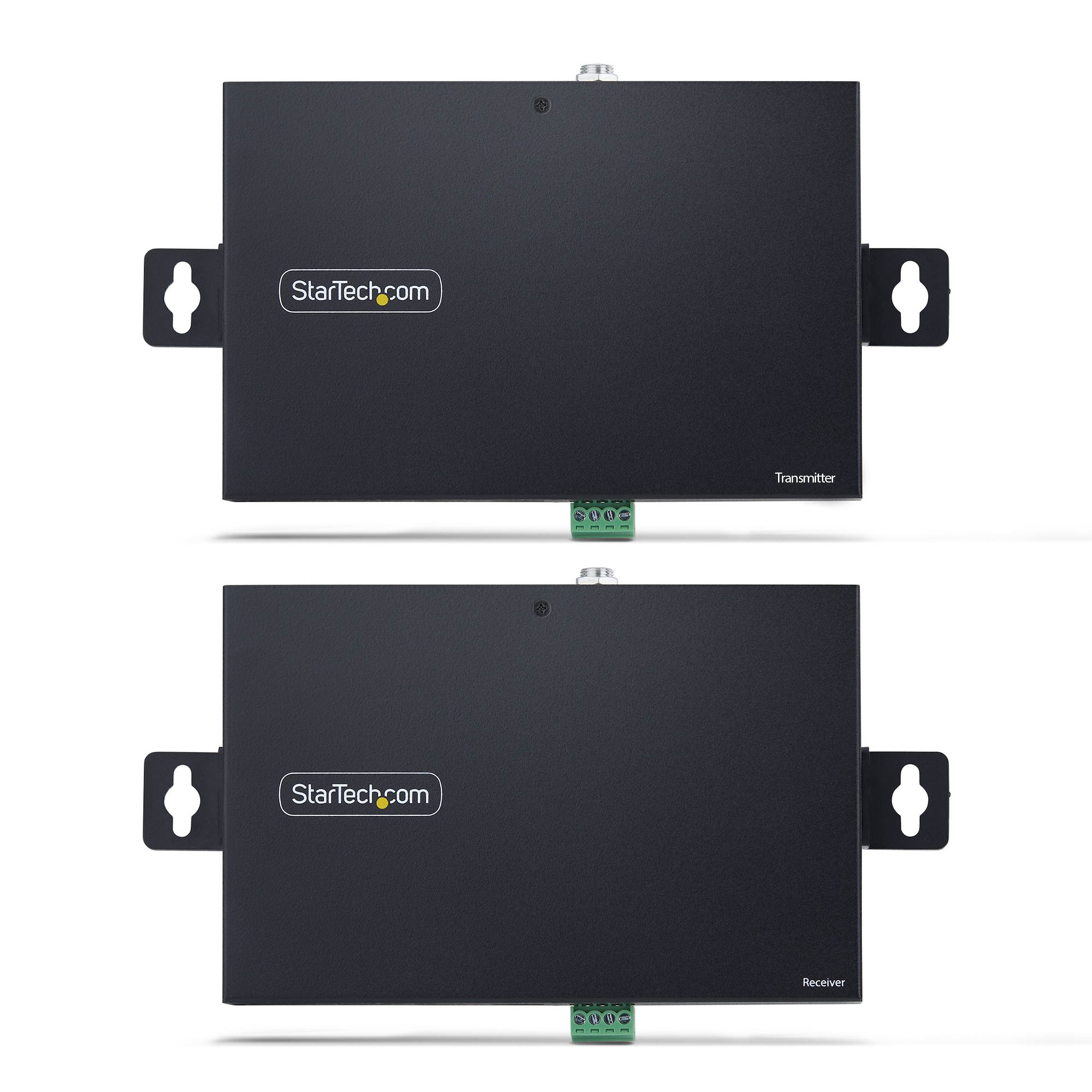

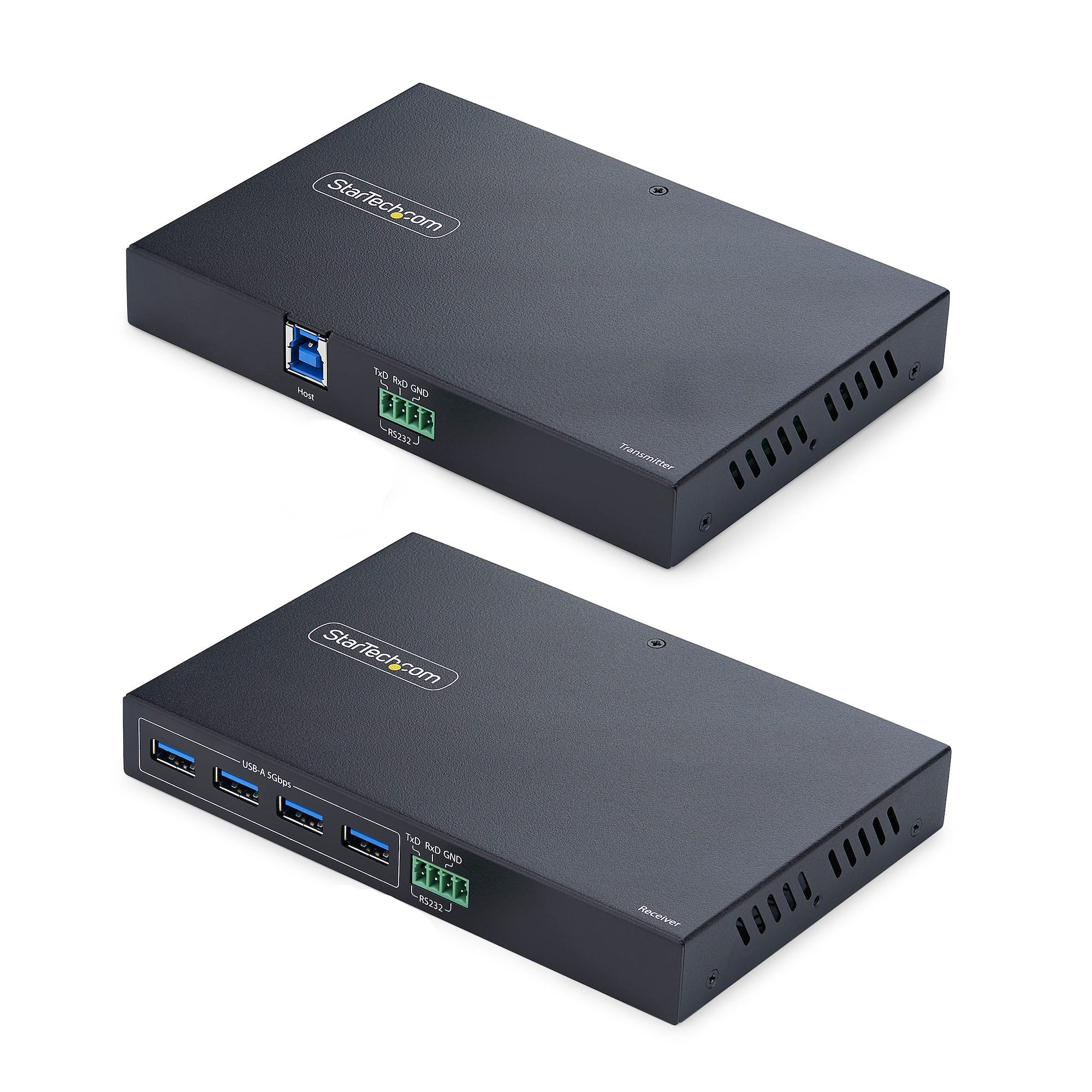

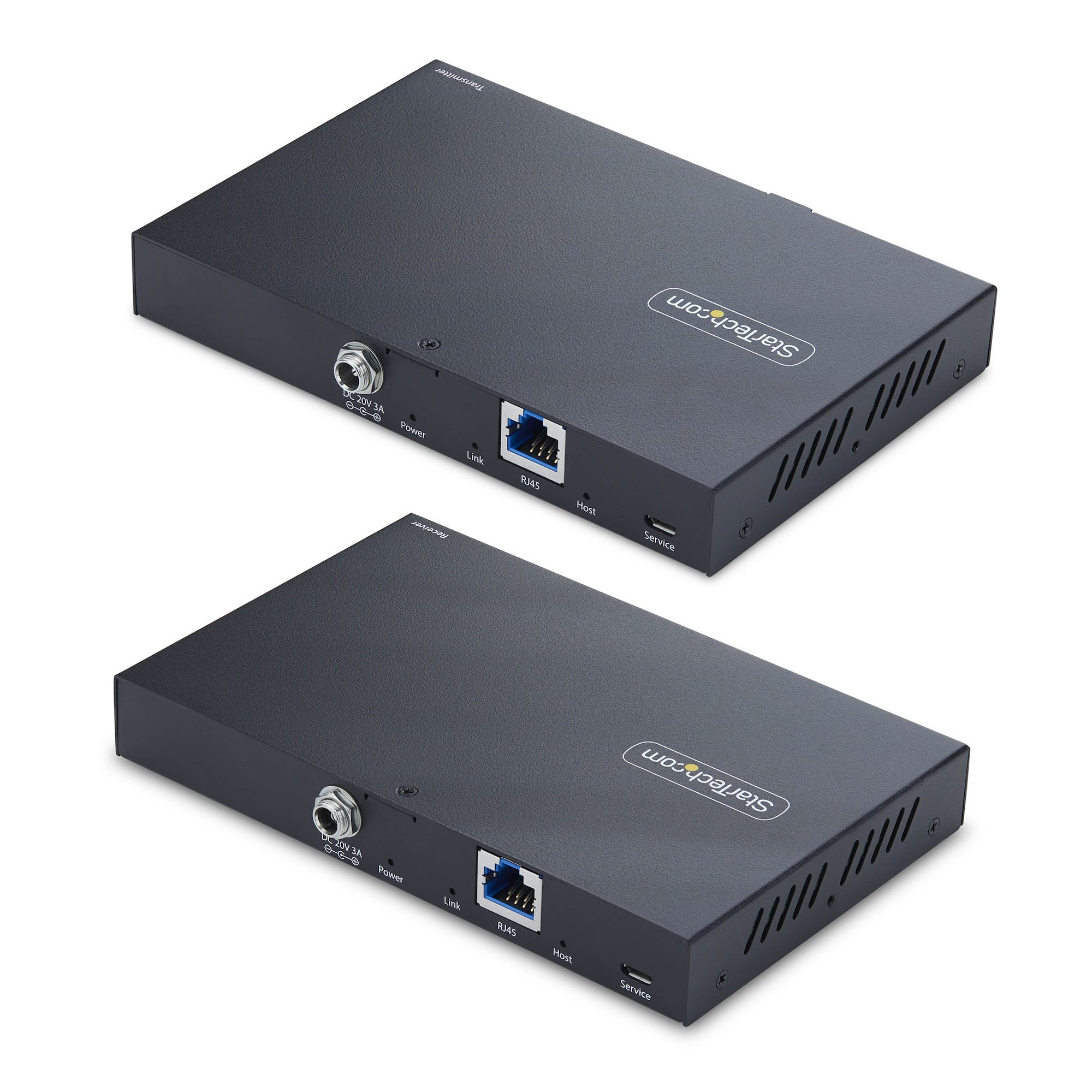

StarTech.com C10043-USB-EXTENDER console extender Console transmitter & receiver 5000 Mbit/s

Extend four USB 3.0 peripherals up to 330ft (100m) over Cat6a/Cat7/Cat8

USB 3.0 over Ethernet Extender Kit connects up to four USB peripherals to a host computer up to 330ft (100m) away via a single direct-run Cat6a, Cat7, or Cat8 RJ45 cable.

Overcome USB Distance Limitations

This compact extension adapter kit is ideal for extending the typical reach of USB cables beyond standard lengths. Use it to connect webcams, data acquisition tools, storage devices, and input peripherals in locations such as classrooms, kiosks, industrial workstations, or control rooms. The system supports USB 3.2 Gen 1 (5Gbps) data rates, delivering high-speed performance without sacrificing reliability over long distances.

Flexible Power Over Cable (PoC) Setup

Power either the transmitter or receiver unit with the included power adapter, as both devices share power via the Ethernet cable, simplifying setup and reducing the need for separate power sources at both ends of the link, especially useful in space-constrained or hard-to-access environments.

Support Pro-Grade Integration

Delivers 5Gbps speeds and features RS-232 passthrough for serial control in automation setups. Built with rugged metal housings for enhanced protection and durability.

Driverless and OS-independent, this point-to-point USB extender requires no software and is compatible with Windows, macOS, and Linux.

StarTech.com C10043-USB-EXTENDER. Width: 3.94" (100 mm), Depth: 5.91" (150 mm), Height: 0.807" (20.5 mm). Cables included: USB Type-A to USB Type-B. Power source type: DC, Power consumption (typical): 60 W, Input voltage: 100 - 240 V. Master (outer) case width: 21.1" (535 mm), Master (outer) case length: 17.8" (453 mm), Master (outer) case height: 15" (380 mm)
