STARTECH.COM

StarTech.com 4P-SATA-M2-ADAPTER interface cards/adapter Internal

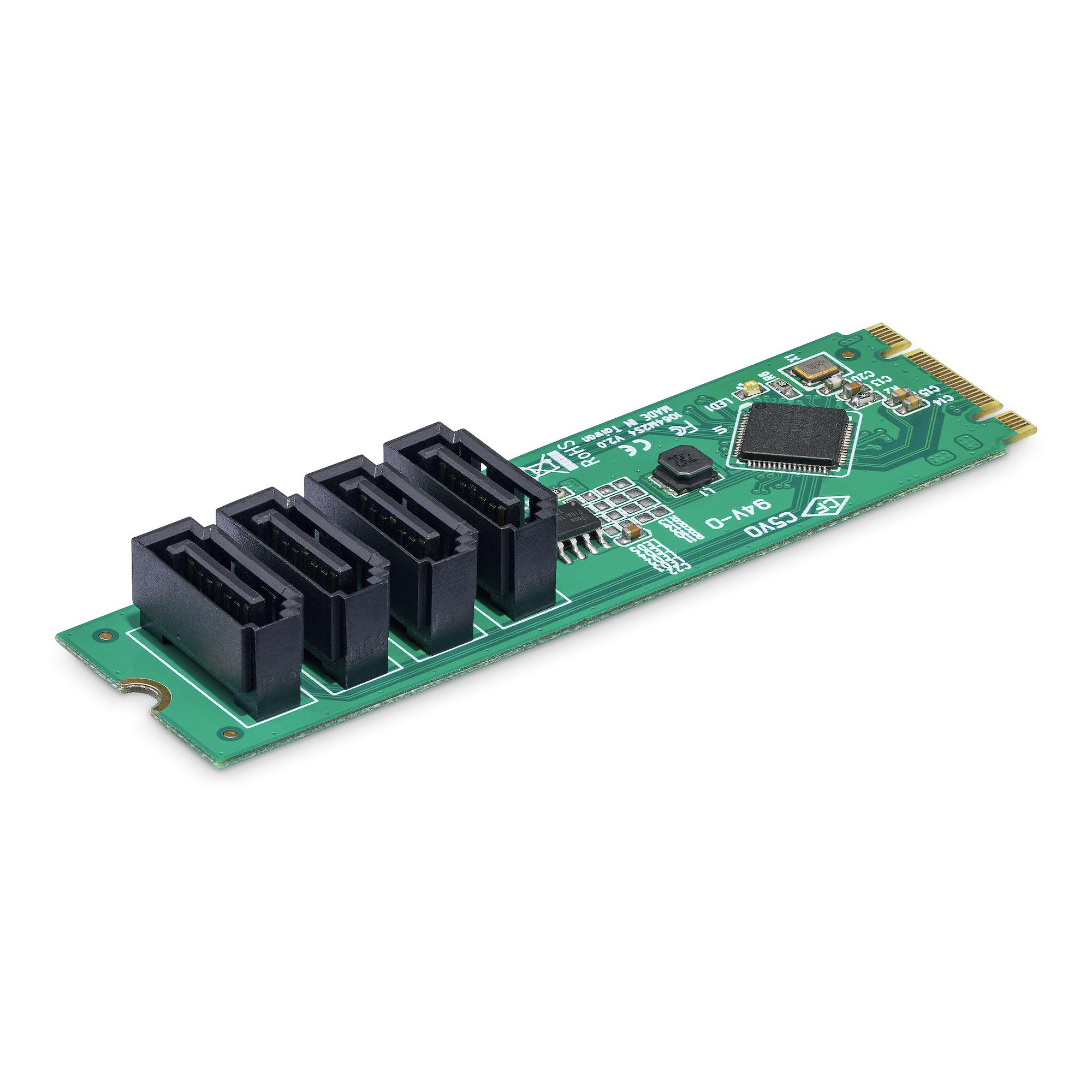

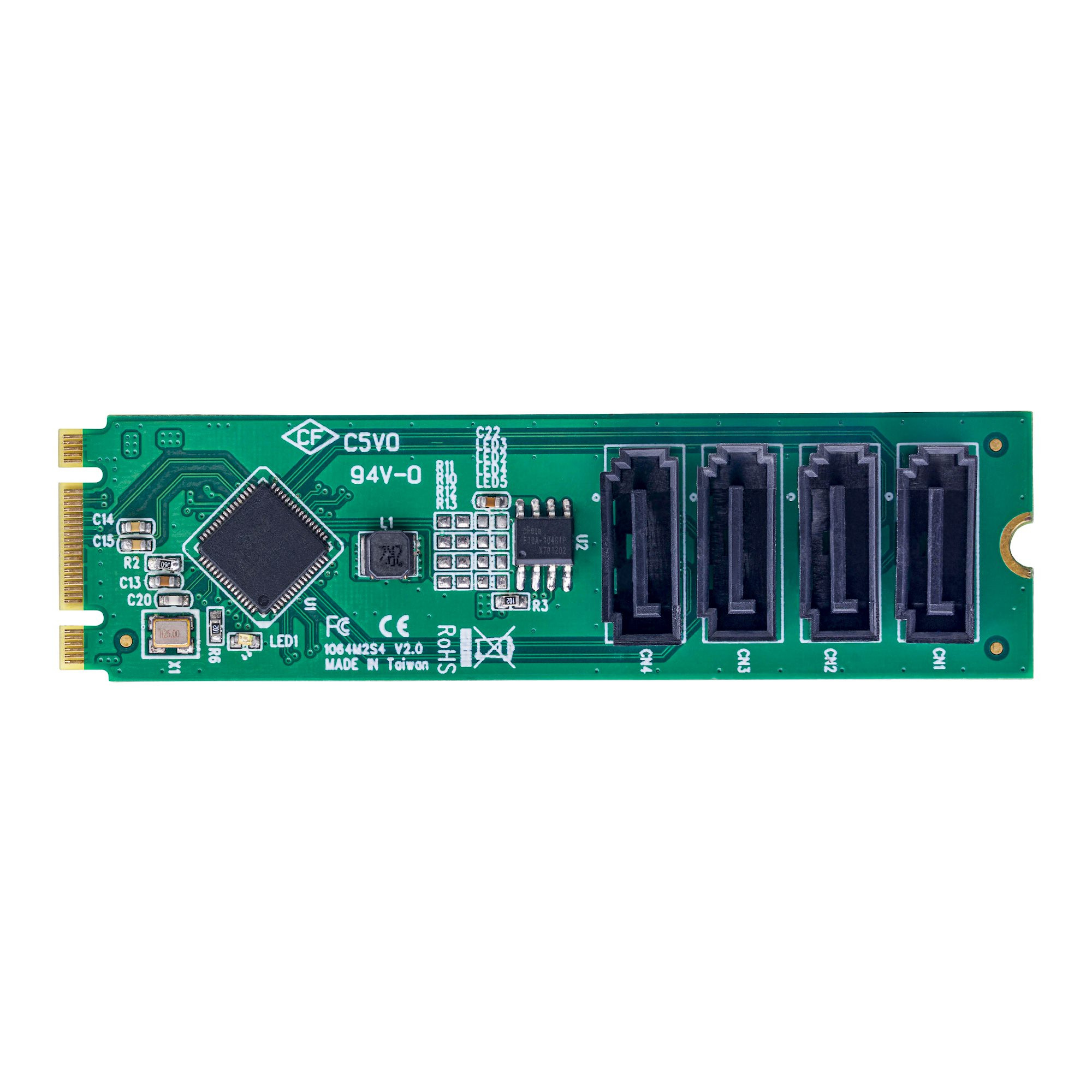

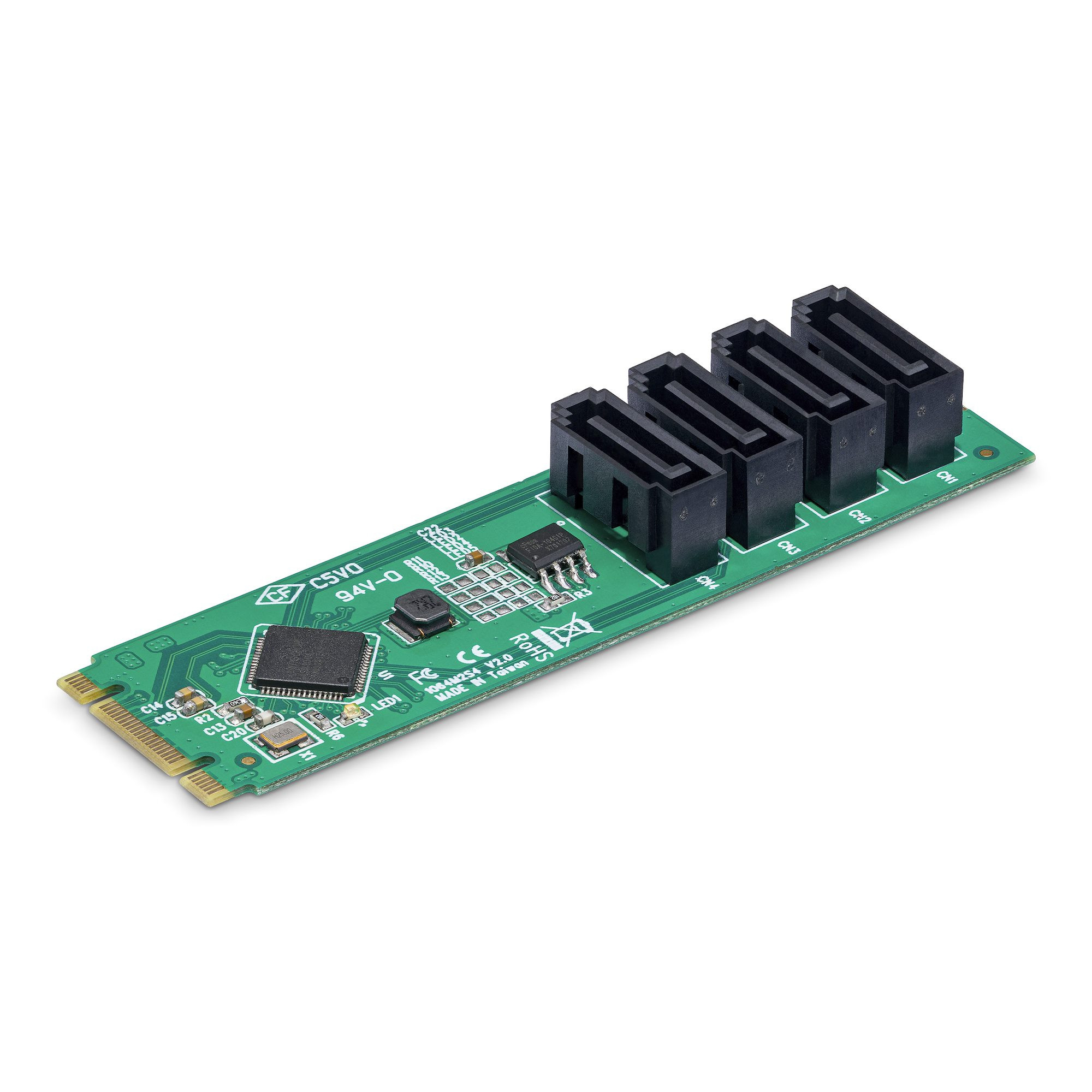

Install four SATA drives via one M.2 slot for a high-density storage solution

Add up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot, maintaining SATA 6Gbps read/write speeds per drive.

Cost-Effective Storage Expansion

This setup can be used with modern motherboards or external enclosures that feature a PCIe-based M.2 slot, allowing for a cost-effective expansion of storage capabilities. Four 19.6-inch (50cm) SATA cables are included to connect the HDDs or SSDs for quick installation.

Compatibility

The drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. This adapter card is compatible with all hardware platforms, such as Intel and AMD, and supports software storage management, including Microsoft's Storage Spaces.

Applications

This storage expansion card is ideal for data storage, backups, NAS setups, photographers, videographers, and content creation, where large storage capacity and reliability is required.

ASMedia ASM1064 Chipset

The 4-Port M.2 NVMe to SATA Adapter supports TRIM, SMART data pass-through, SATA I/II/III, and PCI Express 3.0.

Note: Only compatible with PCIe-based B-key or M-key M.2 drive slots

Note: Not compatible with SATA-based M.2 drive slots

The StarTech.com Advantage


StarTech.com 4P-SATA-M2-ADAPTER. Host interface: M.2, Output interface: SATA, Expansion card standard: PCI 3.0. Product color: Green, LED indicators: Power, Mean time between failures (MTBF): 68555579 h. Chipset: ASMedia ASM1064. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma. Width: 0.866" (22 mm), Depth: 3.15" (80 mm), Height: 0.433" (11 mm)
