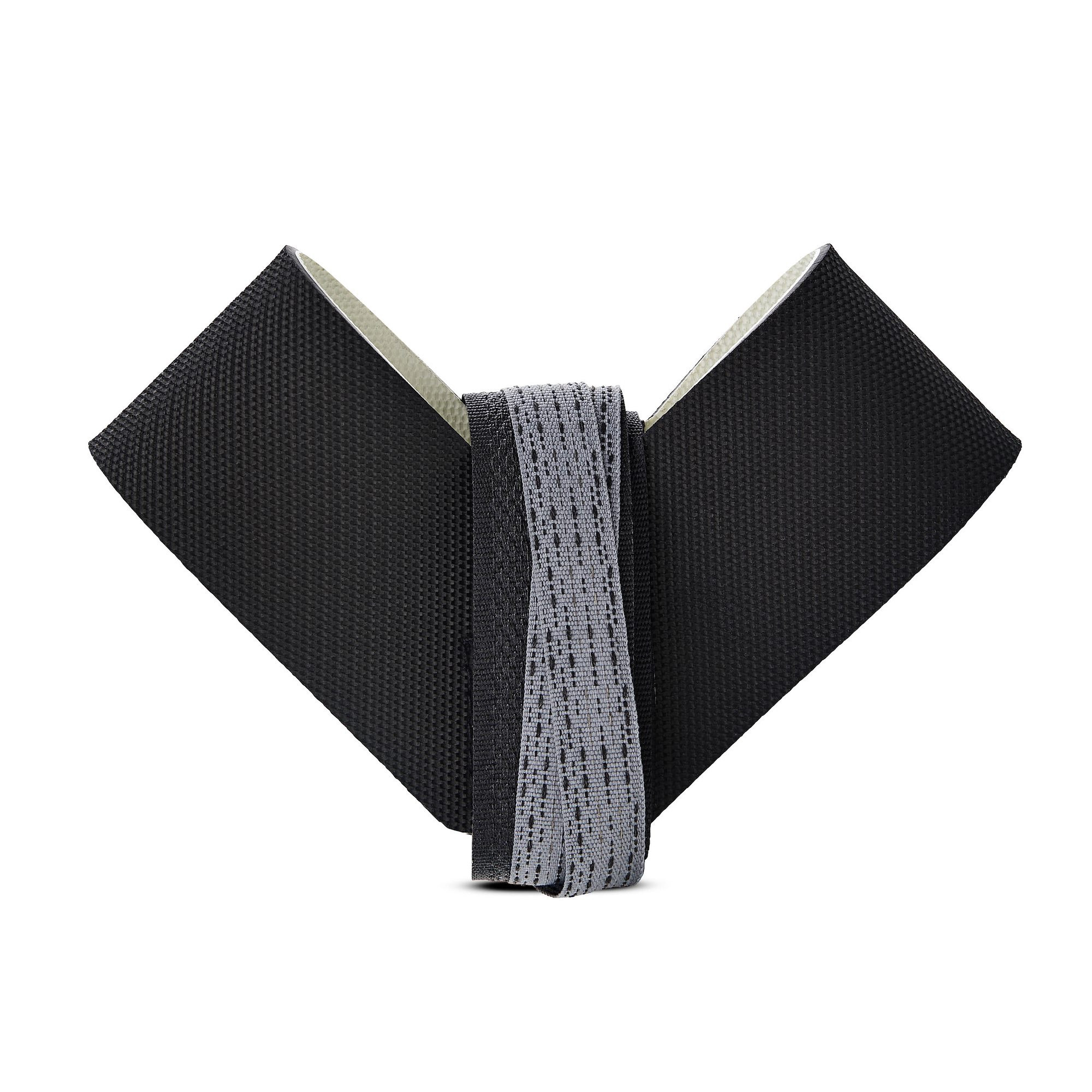

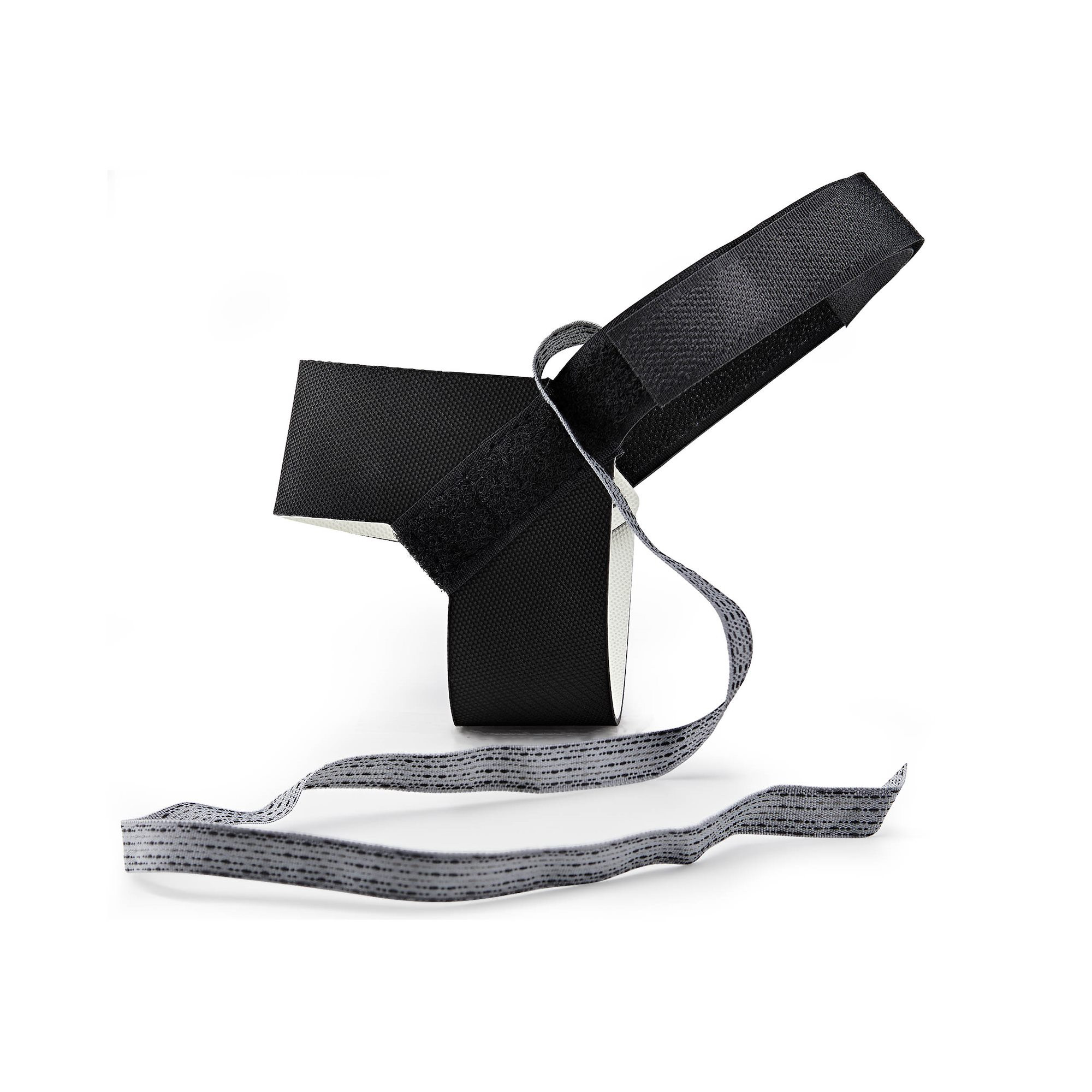

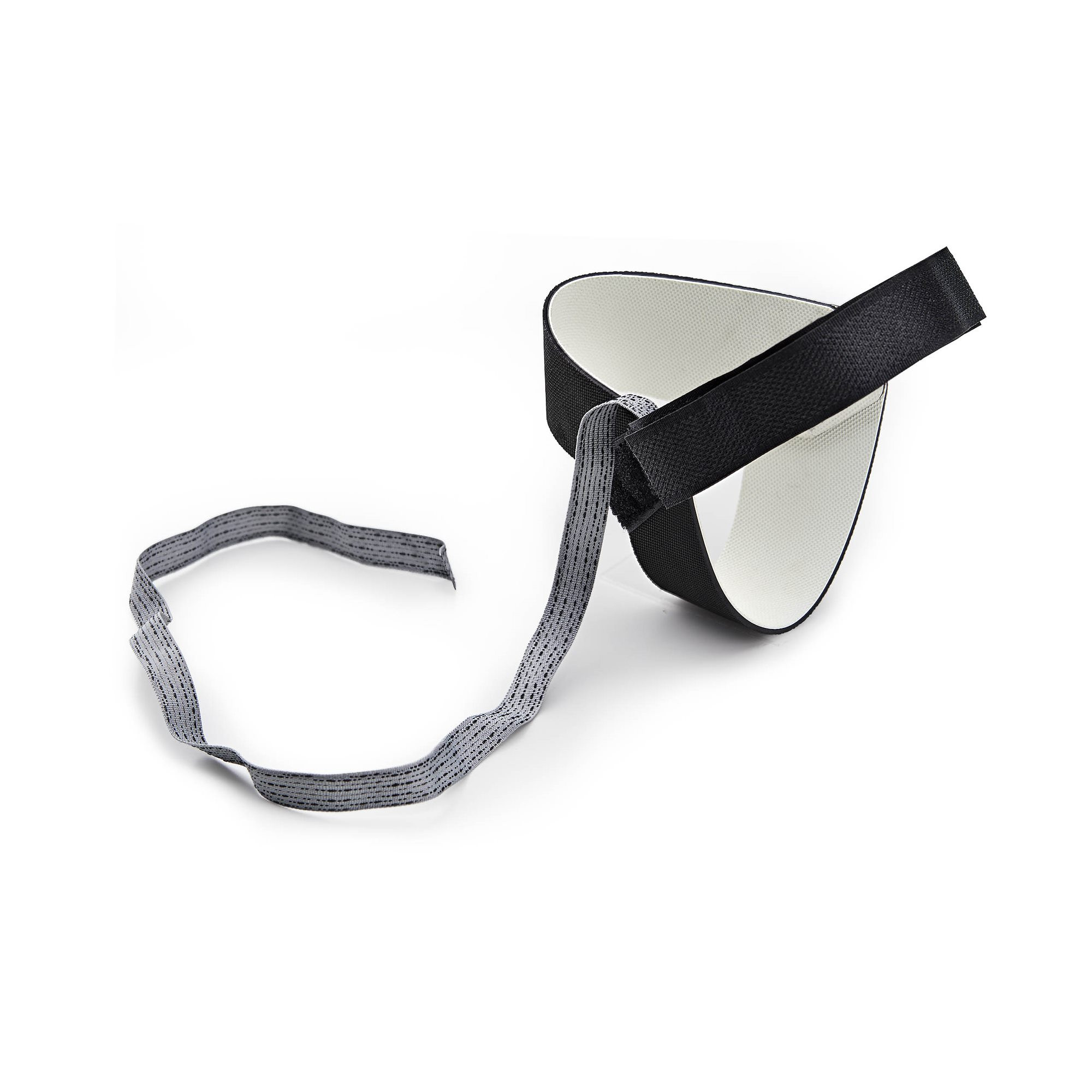

StarTech.com ESD-HEEL-GROUNDER foot grounder Black

Protect sensitive electronics by discharging static electricity while moving

Protect sensitive electronics from electrostatic discharge during repairs, assembly, or equipment handling with this TAA-compliant ESD heel strap.

Consistent ESD Grounding

The heel grounder grounds the user safely, discharging static buildup before it can damage sensitive electronics. A built-in 1MΩ resistor limits current flow to reduce the risk of electric shock. The conductive ribbon (19.6in / 50cm) maintains skin contact, ensuring consistent grounding with the anti-static floor.

Note: For consistent grounding, both shoes should use a heel grounder.

Adjustable Fit

Hook-and-loop fastener fits most shoes up to 3.3in (8.5cm) wide, making it easy to standardize one heel grounder size across teams and workstations.

Workstation-Ready Design

Tetherless design allows for unrestricted movement within static-controlled environments. Lightweight and built for long-term use in labs, cleanrooms, and other areas where heel-to-floor grounding is required.

StarTech.com ESD-HEEL-GROUNDER. Product color: Black, Resistance range: 0 - 1000000 Ω. Width: 4.33" (110 mm), Depth: 22.6" (575 mm), Height: 3.15" (80 mm). Quantity per master (outer) case: 200 pc(s), Master (outer) case length: 13.2" (335 mm), Master (outer) case width: 16.9" (430 mm)
