TP-LINK

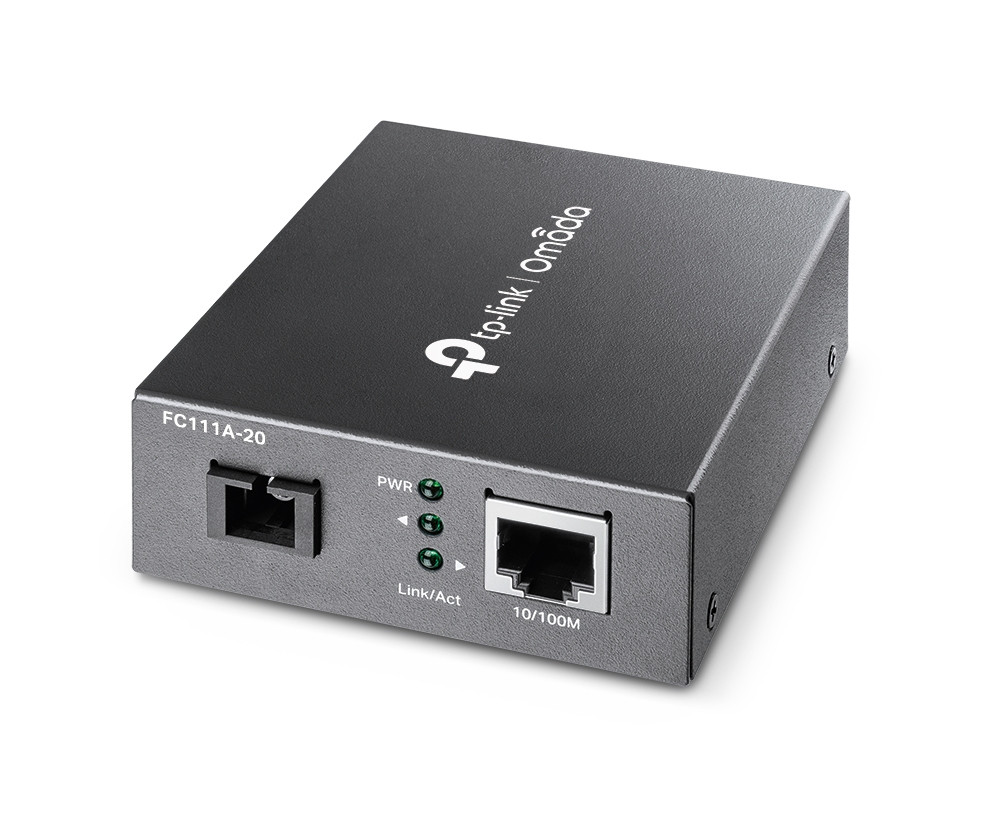

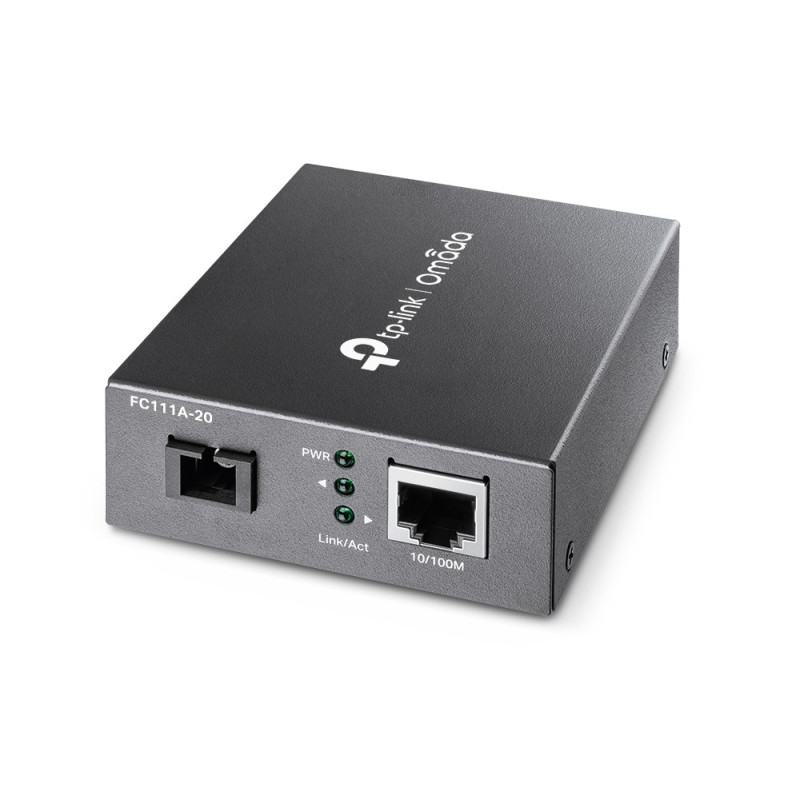

TP-Link Omada FC111A-20 network media converter 100 Mbit/s Single-mode Black

What This Product Does
FC111A-20 (TL-FC111A-20) is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works
FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the FC111A-20 should send data at a wavelength of 1310nm and receive data at a wavelength of 1550nm. TP-Link another media converter FC111B-20 is one of the products that can cooperate with FC111A-20.

Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.


TP-Link Omada FC111A-20. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, Ethernet LAN data rates: 10,100 Mbit/s. Maximum transfer distance: 787401.6" (20000 m), Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 9/125 µm. LED indicators: Activity, Link, Power, Product color: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 0.6 A
