BOSCH

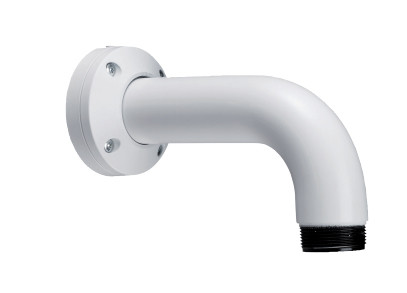

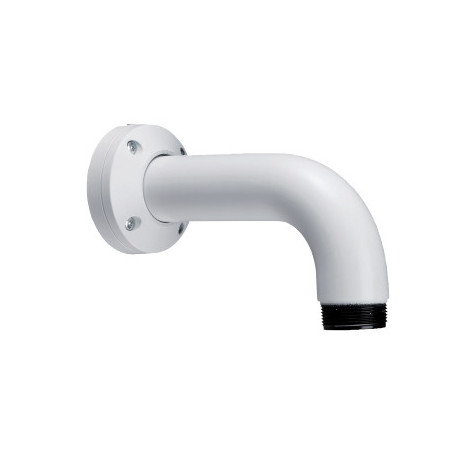

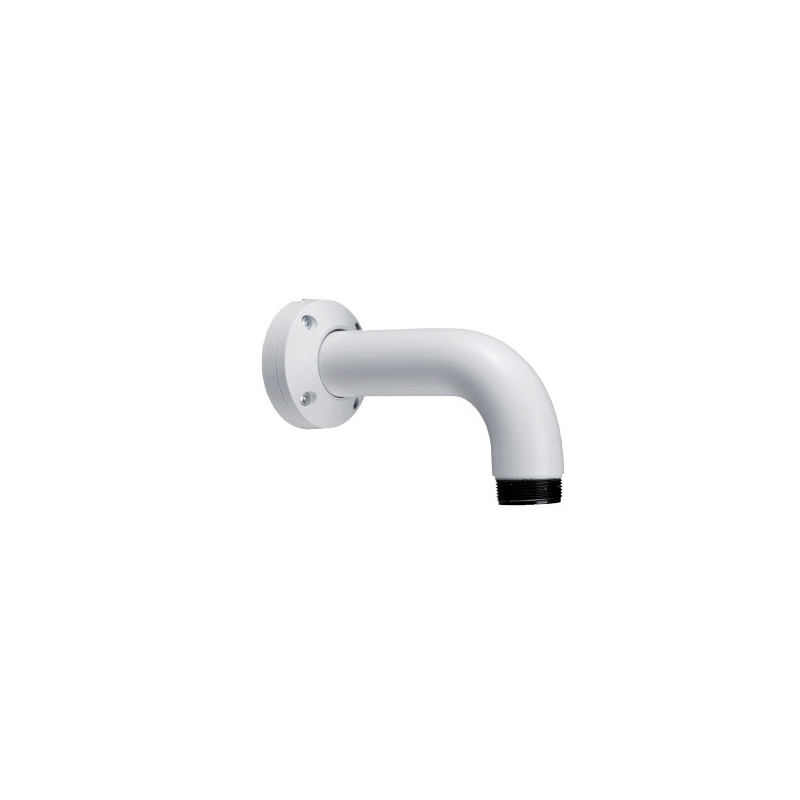

Bosch NDA-U-WMT security camera accessory Pendant bracket

The modular camera mounts & accessories are a family
of mounts, mounting adapters, pendant interface
plates and surveillance cabinets which can be used
with a wide range of Bosch cameras. The accessories
are easy to install and can be combined to simplify
installation in multiple locations whilst retaining the
same look and feel.

Pendant wall mount
The pendant wall mount supports multiple installation
scenarios including direct installation to a wall, pole or
corner through the use of a suitable adapter. The
integrated swivel function ensures the installed
camera is always level. The mount allows easy cable
management or it can be combined with additional
surface mount boxes to cater for conduit connections.
It provides a safe and robust solution to mount
cameras directly to a wall or ceiling in combination
with the following accessories:
- NDA-U-PSMB Pendant wall/ceiling mount SMB
- NDA-U-PA0/1/2 Surveillance cabinet
- NDA-U-WMP Wall mount plate
- NDA-U-CMT Corner mount adapter
- NDA-U-PMAL Pole mount adapter large
- NDA-U-PMAs Pole mount adapter small

Bosch NDA-U-WMT. Type: Pendant bracket, Placement supported: Universal, Product color: White. Diameter: 4.02" (10.2 cm), Width: 8.95" (227.4 mm), Height: 6.13" (155.7 mm)
